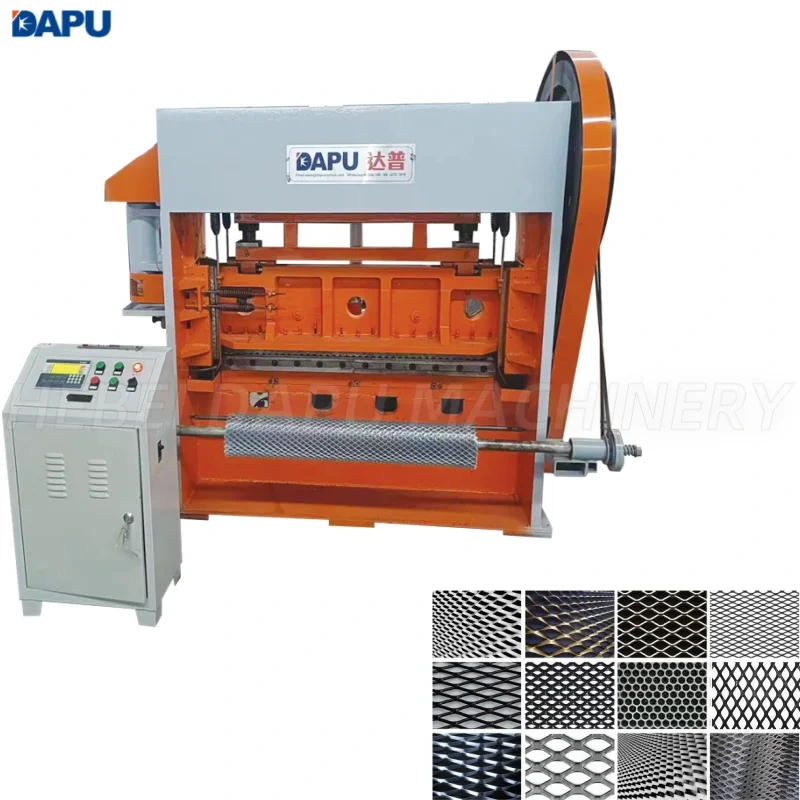

High Efficiency High Quality Expanded Metal Press Machine
High speed wall plaster expanded metal mesh machine/expanded metal mesh welding machine/expanded metal machine
Expanded metal mesh machine can expand all kinds of steel and iron plate. Then stretch it to fence mesh, this machine can be called fence machine.
Expanded steel mesh machines are divided into two types: stretched mesh and punched mesh. Also known as expanded steel mesh punching and shearing machine, diamond mesh machine, stretched mesh machine, round hole mesh machine, special-shaped mesh punching mesh machine.
| Model | DP25-25T | DP25-40T | DP25-100T | ||
| Punch speed(R/m) | 260 | 110 | 65 | 60 | |
| LWD Max.(mm) | 30 | 80 | 180 | ||
| Thick(mm) | 0.2-1.5 | 0.2-1.2 | 0.5-2.5 | 0.5-5 | |
| Width Max.(mm) | 1250 | 1500 | 1500 | 2000 | 2500 |
| Feeding distance(mm) | 0.5 | 0-10 | 0-10 | ||
| Motor(kw/rpm) | 5.5/1440 | 11/1400 | 18.5/1470 | 22/1470 | |
| Weight(T) | 3.3. | 3.9 | 6 | 13 | 14 |
| L*W*H(mm) | 1350*2250*1930 | 1350*2500*1930 | 1830*3100*2030 | 3300*3700*2500 | 3300*4200*2500 |
| Model | DP25-160T | DP25-260T | |||
| Punch speed(R/m) | 60 | 55 | 50 | 45 | |
| LWD Max.(mm) | 240 | 200 | |||
| Thick(mm) | 0.5-6 | 0.5-5 | 1-10 | 1-8 | |
| Width Max.(mm) | 2000 | 2500 | 3200 | 2000 | 2500 |
| Feeding distance(mm) | 0-10 | 0-10 | |||
| Motor(kw/rpm) | 30/1470 | 55/1470 | |||
| Weight(T) | 16 | 18 | 20 | 26 | |
| L*W*H(mm) | 3550*3800*2650 | 3550*4300*2650 | 3550*5000*2650 | 3700*4400*2700 | 3700*4900*2700 |
1. Raw material can be galvanized steel, stainless steel, aluminum steel, mild steel etc.
2. The mesh length can be set by PLC according to your requirement.
3. The machine can produce two 0.8m mesh width at same time.
4. Pneumatic clutch device, machine working more stable.
5. Automatic oil lubrication system, no need manual operation.
6. The copper sheathing with small holes on it, easily for oil lubrication. The service life is longer.
7. It can produce different mesh opening size by different upper cutters.
|
Siemens PLC |
Siemens Touch screen |
|
|
|
| Schneider switch, contactor, relay | Schneider breaker |
|
Two servo motors to control steel plate move forward, left and right |
|
|
Decoiler |
Flattening machine |
Q:Where is your factory located?A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
