Expanded Metal Mesh & Grill Sheet Production Machine
5.0
model number:
DP25-25
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):35(days),>1(sets):To be negotiated(days)
brand name:
DAPU
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Net weight
3000
Overall dimension
1100*2070*2080mm
Feeding distance
0-5mm
Material max.width
Max.1250mm
Motor
4kw
Mesh opening size
Max.30mm
Stroke per minute
220 times/min
Material thickness
0.3-1.5mm
power (kw)
4
production capacity
30
wire diameter (mm)
0.3 - 1.5 mm
machine type
Expanded metal machine
Type
DP25-25
Product name
Expanded Metal Mesh Machine
warranty
2 years
key selling points
Long Service Life
weight (kg)
3000
core components
PLC, Engine, Gearbox, motor
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Hebei, China
Products Description

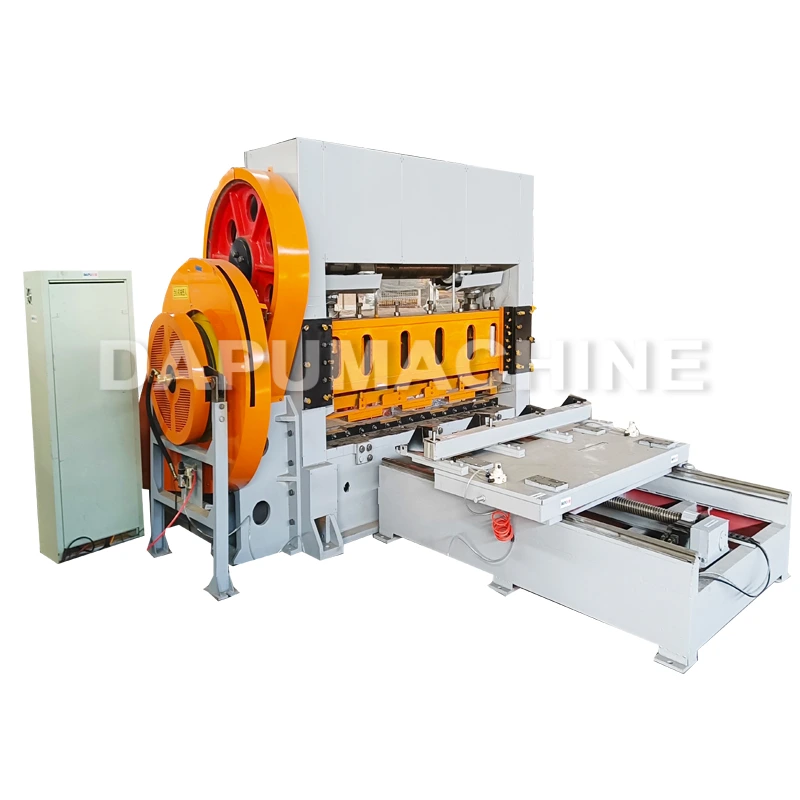

Expanded metal mesh machine
The steel plate mesh machine works by processing metal sheets into mesh structures through processes such as punching, stretching, or welding. The exact method depends on the type of machine and the desired characteristics of the steel mesh.
Our expanded metal mesh machines use advanced technology to efficiently and precisely produce expanded metals of various specifications, which are widely used in construction, mining, transportation and other industries.
Machine mechanism
PLC+Touch screen
Material feeding system
Multi-specification cutters
Decoiler
Stage gear transmission
Flattening machine
Machine Model
Model | DP25-TG10 |
Punch speed | 500R/m |
LWD Max. | 12mm |
Thick. | 0.1-1.0mm |
Width Max. | 650mm |
Feeding distance | 0-6mm |
Motor | 7.5kw/1000rpm |
Weigh | 1.5T |
L*W*H | 1750*740*1250mm |
Model | DP25-25T | DP25-40T | DP25-100T |
Punch speed | 260R/m | 110R/m | 60-65R/m |
LWD Max. | 30mm | 80mm | 180mm |
Thick. | 0.2-1.5mm | 0.5-2.5mm | 0.5-5mm |
Width Max. | 1250-1500mm | 1500mm | 2000-2500mm |
Feeding distance | 0-5mm | 0-10mm | 0-10mm |
Motor | 5.5kw/1400rpm | 11kw/1400rpm | 18.5/22kw/1470rpm |
Weigh | 3.3-3.9T | 6T | 13/14T |
L*W*H | 1350*2250/2500*1930mm | 1830*3100*2030mm | 3300*3700/4200*1250mm |
Model | DP25-160T | DP25-260T |
Punch speed | 50-60R/m | 45R/m |
LWD Max. | 240mm | 200mm |
Thick. | 0.5-6mm | 1-10mm |
Width Max. | 2000-3200mm | 2000-2500mm |
Feeding distance | 0-10mm | 0-10mm |
Motor | 30kw/1470rpm | 55kw/1470rpm |
Weigh | 16-20T | 26-28T |
L*W*H | 3550*3800/4300/5000*2650mm | 3700*4400/4900*2700mm |
Finished Product
Storage basket
Door and window protection
Staircase construction
Architectural Decoration
Safety fence
