    Dimension
    3550mm*5000mm*2650mm
    weight
    18T
    Motor power
    5.5/11/18.5/22/30/55kw
    Max.LWD
    200mm
    Material width
    650-3200mm
    Material thickness
    0.1-10mm
    Material
    Stainless Steel, Copper
    power (kw)
    30
    production capacity
    55R/m
    wire diameter (mm)
    0.2-1.2mm, 0.2-1.5mm, 0.5-2.5mm, 0.5-5mm, 0.5-6mm, 1-8mm, 1-10mm
    machine type
    expanded metal mesh machine
    Warranty
    12 Months
    Speed
    60times/min
    Type
    Fully Automatic
    Product name
    High speed expanded metal machine
    key selling points
    Easy to Operate
    weight (kg)
    3900
    core components
    PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
    machinery test report
    Provided
    video outgoing-inspection
    Provided
    place of origin
    Hebei, China
    Products Description
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 8
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 9
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 10
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 11

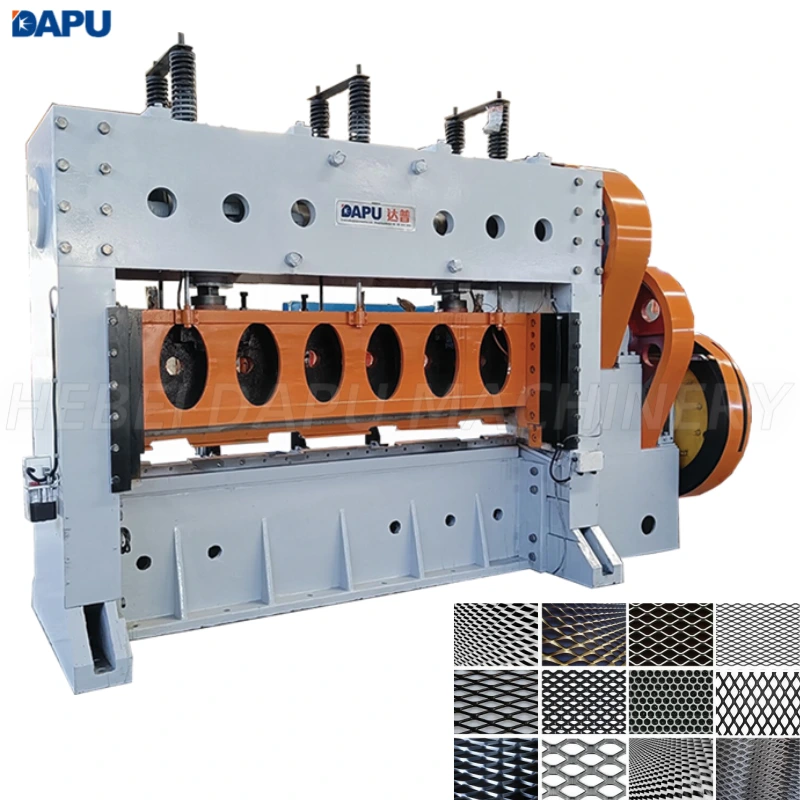

    Expanded metal mesh machine

    The steel plate mesh machine works by processing metal sheets into mesh structures through processes such as punching, stretching, or welding. The exact method depends on the type of machine and the desired characteristics of the steel mesh.
    Our expanded metal mesh machines use advanced technology to efficiently and precisely produce expanded metals of various specifications, which are widely used in construction, mining, transportation and other industries.
    Machine mechanism
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 12
    PLC+Touch screen
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 13
    Material feeding system
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 14
    Multi-specification cutters
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 15
    Decoiler
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 16
    Stage gear transmission
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 17
    Flattening machine
    Machine Model
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 18
    Model
    DP25-TG10
    Punch speed
    500R/m
    LWD Max.
    12mm
    Thick.
    0.1-1.0mm
    Width Max.
    650mm
    Feeding distance
    0-6mm
    Motor
    7.5kw/1000rpm
    Weigh
    1.5T
    L*W*H
    1750*740*1250mm
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 19
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 20
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 21
    Model
    DP25-25T
    DP25-40T
    DP25-100T
    Punch speed
    260R/m
    110R/m
    60-65R/m
    LWD Max.
    30mm
    80mm
    180mm
    Thick.
    0.2-1.5mm
    0.5-2.5mm
    0.5-5mm
    Width Max.
    1250-1500mm
    1500mm
    2000-2500mm
    Feeding distance
    0-5mm
    0-10mm
    0-10mm
    Motor
    5.5kw/1400rpm
    11kw/1400rpm
    18.5/22kw/1470rpm
    Weigh
    3.3-3.9T
    6T
    13/14T
    L*W*H
    1350*2250/2500*1930mm
    1830*3100*2030mm
    3300*3700/4200*1250mm
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 22
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 23
    Model
    DP25-160T
    DP25-260T
    Punch speed
    50-60R/m
    45R/m
    LWD Max.
    240mm
    200mm
    Thick.
    0.5-6mm
    1-10mm
    Width Max.
    2000-3200mm
    2000-2500mm
    Feeding distance
    0-10mm
    0-10mm
    Motor
    30kw/1470rpm
    55kw/1470rpm
    Weigh
    16-20T
    26-28T
    L*W*H
    3550*3800/4300/5000*2650mm
    3700*4400/4900*2700mm
    Finished Product
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 24
    Storage basket
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 25
    Door and window protection
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 26
    Staircase construction
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 27
    Architectural Decoration
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 28
    Safety fence
    Contact Us
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 29
    Machine production line
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 30
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 31
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 32
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 33
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 34
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 35
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 36
    After sale service
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 37
    Our Factory
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 38
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 39
    Expanded Metal Mesh Machine With Flatten And Straightening Equipment Factory Price 40
